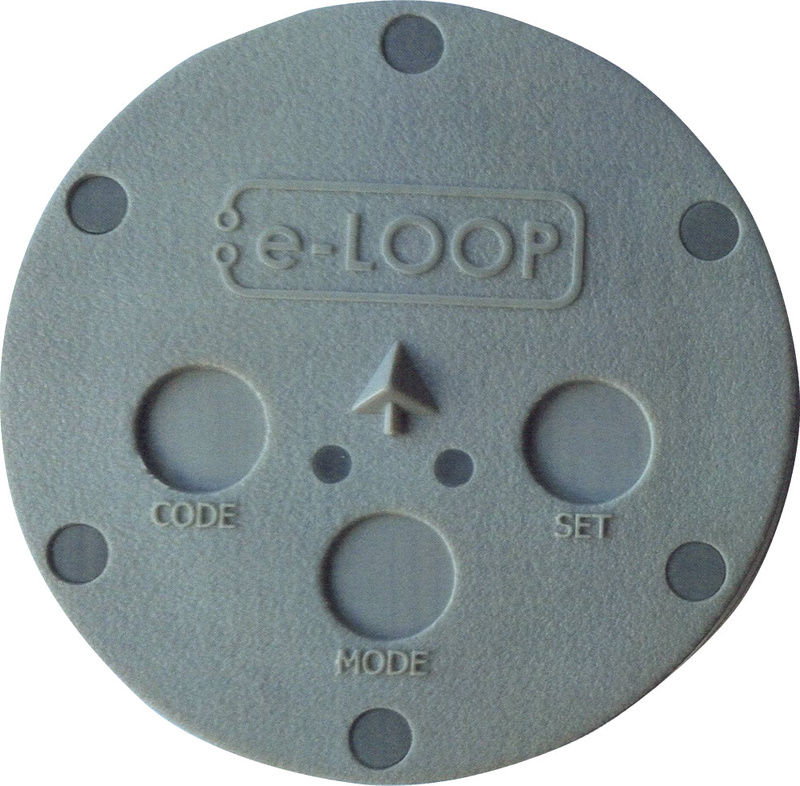

e-Loop In-Ground - Presence Mode
$0.00
Enquire nowThe E-loop In-Ground is a wireless vehicle detection system designed for commercial use, seamlessly integrating into pavement for a sleek appearance. It connects wirelessly to gate controllers without complex wiring, ensuring easy setup. Built robustly to withstand heavy traffic and industrial machinery, it's ideal for demanding areas like truck lots or warehouses. This blend of durability and discreet design makes it perfect for businesses prioritising functionality and aesthetics in their commercial spaces.
- Up to 6 Year battery life
- High security 128-Bit AES Encryption
- Quick Non-Permanent Installation
- Set-and-Forget auto calibration
- Also available in Exit mode
Ideal for demanding environments, the e-Loop in-ground features all the functionality of the commercial with the added advantage of a in-ground installation. Perfect for low clearance vehicles, forklifts, tracked vehicles and heavy equipment. Although all of Microtech Designs’ e-Loop range feature impressive load ratings, damage can be avoided and longevity greatly extended.
The In-Ground Wireless Vehicle Detection System utilises magnetometer sensors to detect vehicles approaching residential areas. When a vehicle is detected, the system sends this data to a nearby Microtech transceiver, enabling automatic gate activation. To install simply measure, cut and secure.
Equipped with a robust 14500 mA battery, the E-loop boasts an impressive operational lifespan of up to 10 years, subject to usage patterns. Crafted from high-impact plastic with a static load limit of 10 tonnes, it ensures resilience and endurance, even in rigorous commercial environments. Its compact design, measuring a mere 53mm in height by 88mm in diameter, combined with an IP68 rating, guarantees peak performance across diverse environmental conditions.

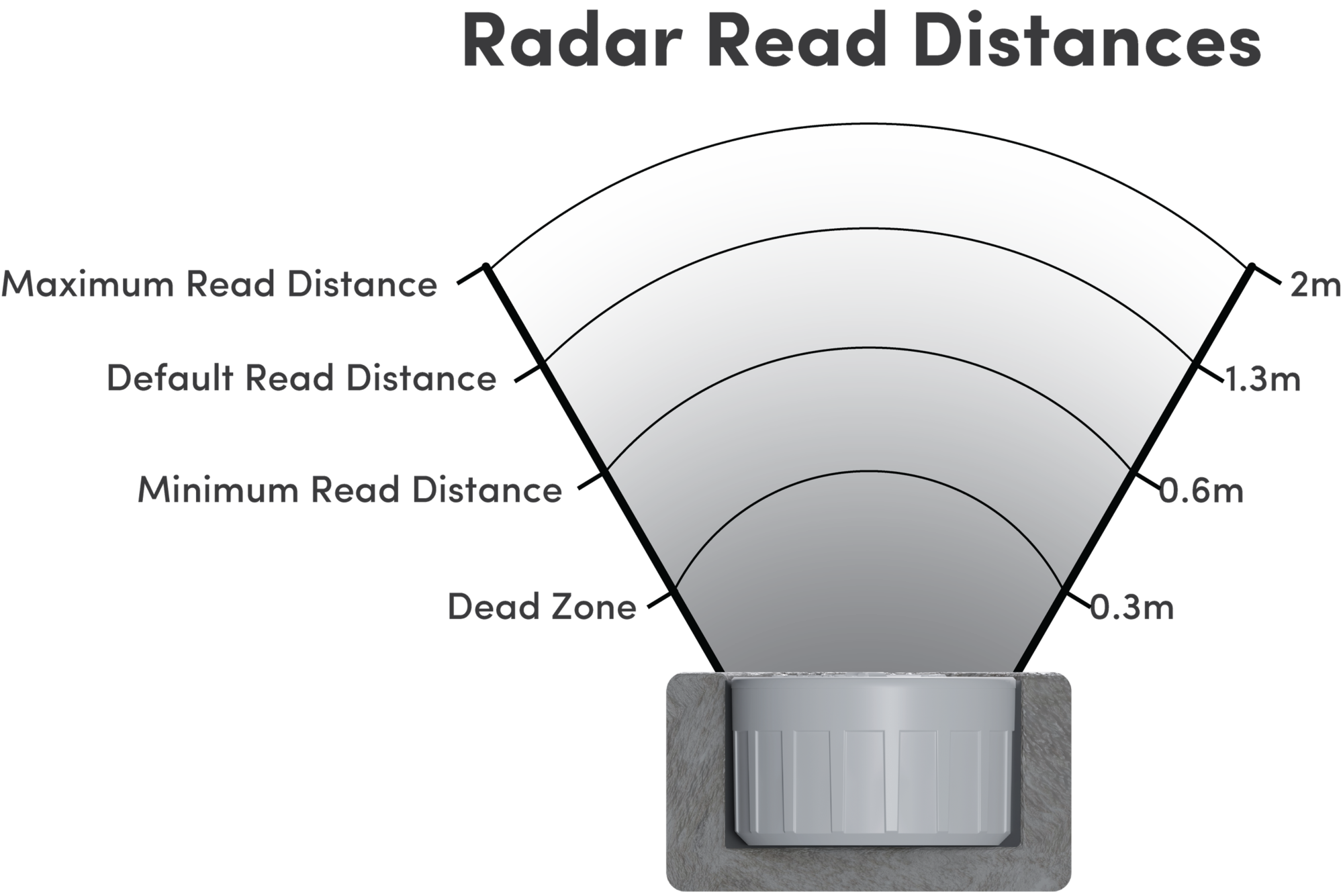

Microtech Designs’ Presence Mode loops offer the next level in vehicle detection; with the addition of a radar sensor an array of extra functionality is added. Upon activation by the magnetometer, a radar read is initiated confirming that the detection is in fact a vehicle. With this functionality, the loop can hold a given relay open when a vehicle is present, detect a parked vehicle and . These advanced sensors decrease potential for tampering.
Security remains paramount with the E-loop In-Ground, integrating advanced 128-bit encryption to safeguard sensitive data and instill confidence in users. With a detection range extending up to 45 meters, it delivers precise and dependable vehicle detection, augmenting operational efficiency and safety within commercial operations. In essence, the E-loop In-Ground epitomises excellence by offering effortless installation, enduring reliability, and cutting-edge security features tailored specifically for commercial applications.
